Truk Penyiram Air Kailifeng Dongfeng D9 15cbm 200-230HP – KLF5181GPSE6

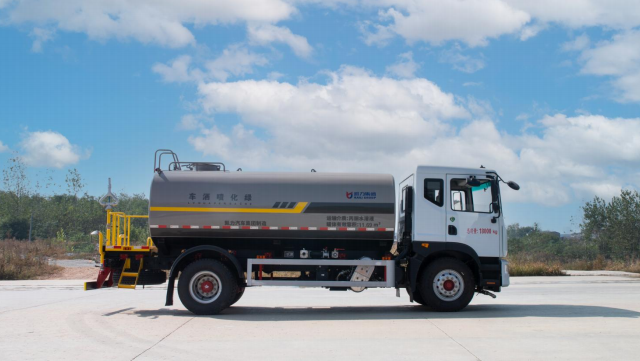

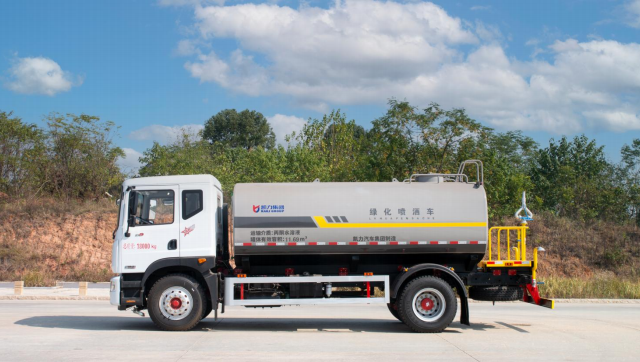

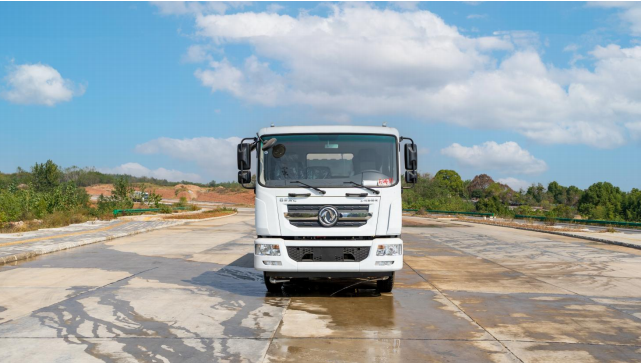

The Kailifeng Dongfeng D9 water sprinkler truck (model KLF5181GPSE6) is a professional sanitation truck built on the Dongfeng EQ1185LJ9CDE chassis. This sprinkler truck serves road cleaning, green irrigation, dust suppression, and emergency water supply. The water tank truck uses a Q235 carbon steel tank measuring 4,600×2,400×1,600 mm, offering an effective volume of 11.69 cubic meters. Total gross weight of the road sprinkler is 18,000 kg, with a rated load capacity of 11,110 kg.

Two engine options exist for this water sprinkler truck: Yuchai YCS04200-68 (200 hp) or Cummins B6.2NS6B230 (230 hp). Both meet China VI emission standards. The sprinkler truck uses a Fast 8-speed transmission. Chassis features include a 2315 mm cab, 4.5T front axle, 10T rear axle, 10.00R20 steel cord tires, 250 mm frame, exhaust brake, air conditioning, power windows, and central locking. This robust chassis ensures the water tank truck operates stably on rough roads.

The tank of this road sprinkler undergoes finite element analysis and automated welding. Inside the tank, 2-3 anti-slosh baffles reduce liquid surge. An acrylic level gauge displays remaining water volume. The sanitation truck uses a Yifeng or Tianyi 80QZF-60/90N(S) pump, delivering stable flow. The main pipeline uses large-diameter steel pipes with anti-corrosion coating. A four-way valve with stainless steel filter and DN65 firefighting inlet is installed. All ball valves are aluminum alloy.

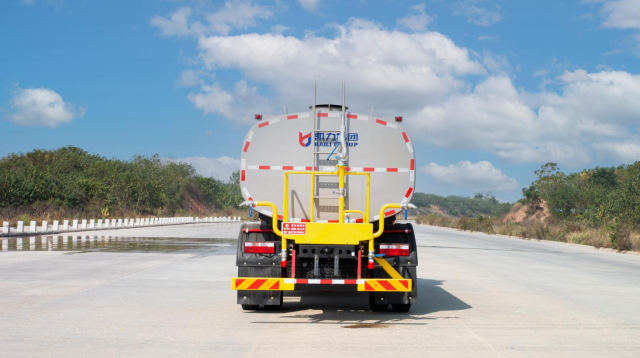

The Dongfeng D9 sprinkler truck provides front impact spray (18-22m width, aluminum alloy, universal adjustment), rear spray (15-18m), side spray (15-20m), and a 360° adjustable water cannon (range 30-45m, switchable among jet, rain, and mist modes). The water sprinkler truck rear platform includes anti-slip footboards and a safety ladder. Such versatility makes the road sprinkler ideal for municipal and agricultural applications.

The sanitation truck features a double-support side guard with edge lights, and a cast-molded subframe connection replacing traditional U-bolts. Kailifeng offers a 1-year or 30,000 km warranty on the upper equipment. A 24/7 service hotline and 260+ service centers across China provide quick support. The first free maintenance occurs at 3,000 km or 1 month. Export to over 70 countries ensures global service for every water sprinkler truck.
